Am I being to pedantic here? Every other rib is fantastic. I wouldn't even know HOW to fix this...

in S-21 TECH QUESTIONS

6 answers3 replies

9 Comments

Jase

Jul 26, 2020

An I hope I don;t have to drill steel rivets out again.... that sucked...big time....even with an ATS tool....

Mark Kyle

Jul 29, 2020

Replying to

looks good.

Jase

Jul 26, 2020

And after a COVID USPS delay, and some other stuff I needed to do (like house reno's) I finally got back to this... The fella's sent me a new angle that I could match drill to get the right height....

Mark Kyle

May 10, 2020

I see the problem now in your original pic...the boys didnt have that issue..

Mark Kyle

May 10, 2020

I will see if I can find a picture of gregs ones

Mark Kyle

May 09, 2020

Rodger and Greg had similar issues...the front tab is rounded and doesnt sit nicely to the spar. If you file the tab flat right at the spar that tab should drop down just enough. Also the rib attachment corner pieces to the spar and the rib edges did you make sure they were at 90 deg. The rib edges you need to tap with a block of wood while the rib is flat on the bench to make sure all the pressed edges with the flutes in them are 90 deg to the main body of the rib

Jase

May 09, 2020

Replying to

Yeah I check them all with a square.... Generally pretty good to be honest...

Mark Kyle

May 09, 2020

What are we looking at? Cant see too much wrong?

Jase

May 09, 2020

Replying to

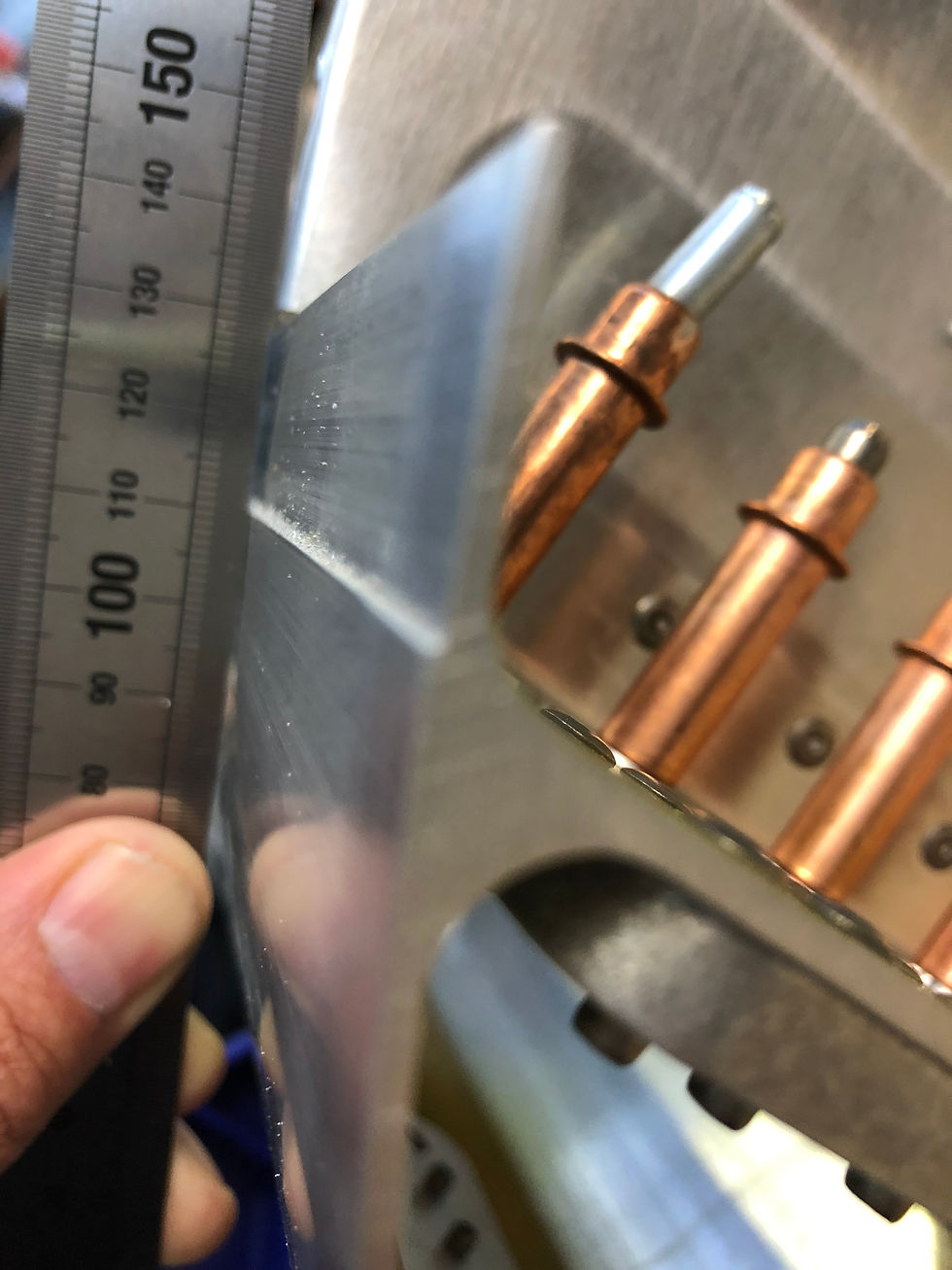

Hey mate.... this is root rib on my right wing... this, I would have thought, would be like all the other wings, and transition nicely onto the spar, but for a reason I cant work out it sits maybe a mm high... I thought while doing it that maybe the skin ends there but it doesn’t, so I think if I proceed it will have a pretty nasty bend down to the spar...
