Windshield

in S-21 TECH QUESTIONS

Does anyone have some pics of the windshield install?

Thanks, Steve

4 answers4 replies
0
8 Comments

Share Your ThoughtsSign up to leave a comment.

stevek7m
Jan 31, 2020

Ok well the front corners dd sit on the wing front d spars but at the back of the windshield it sits on top of the wing skins, should I trim it where it fits down in between? Thx

2
T
Tony D.
Feb 03, 2020
Replying to

Yes, trim the Acrylic and the lexan to fit in between the wing skins. There are 3 pieces that will be used to hold the windshield and skylight to top of the wing, one of which goes under the windshield and skylight, one of which is a spacer and the other is the top hold down strip.

Like

hootsnik
May 20

There is a detailed drawing on figure 10g-12 that shows the orientation of the windshield/ the trim strips/spacers and the wing root flange. It does show a small overlap of the windshield sides over the root flange aft of the spar overlap.

1

R
Ryan
Jan 31, 2020

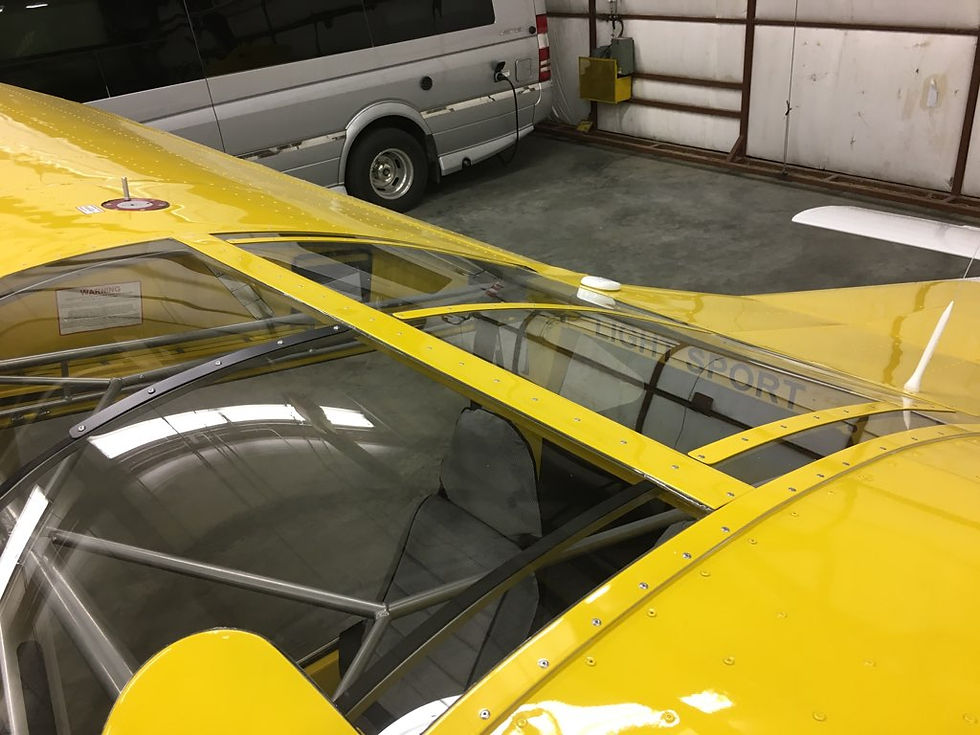

Steve, I have attached various pictures of the S-21 windshield install. Make sure you have the current windshield figures. Happy building!



1
stevek7m
Jan 31, 2020
Replying to

So does the corners of the windshield sit on top of the D spars of the wings and should it fit in between the top wing skins?

Like

RANS Admin
Jan 31, 2020
Replying to

@stevek7m the instructions have been sent to you.....see if that helps.

Like

R
Ryan
Jan 31, 2020
Replying to

@stevek7m, That is correct!

Like

RANS Admin
Jan 31, 2020
